        Concrete Glued Steel Fiber Making Machine Manufacturing Equipment Production Line

        The end hook steel fibre equipment we developed is trusted deeply by users. The seventh generation of copper locking end hook steel fibre equipment we have developed recently adopts advanced technology imported from South Korea, imported bearings and imported mold steel. The forming rate of end hook steel fibre made by the equipment can be 99%. It is an end hook steel fibre equipment with highest forming rate in current market. Hooked end steel fibre can form at one time during production.

        我們能為您做什么
        *
        這是一個必填項
        您需要的總數量
        *
        這是一個必填項
        這是一個必填項
        電子郵件格式錯誤
        由于電子郵件可能不穩定,為避免錯過我們的信息,請?zhí)峁┠碾娫?huà)號碼,以便我們能夠通過其他方式與您聯系。 *
        這是一個必填項
        電話格式有誤
        提交
        http://www.bjdhsj.net/uploadfiles/60.247.152.80/webid2116/source/202404/29648171378498010.jpg
        Concrete Glued Steel Fiber Making Machine Manufacturing Equipment Production Line
        Concrete Glued Steel Fiber Making Machine Manufacturing Equipment Production Line
        Concrete Glued Steel Fiber Making Machine Manufacturing Equipment Production Line
        Concrete Glued Steel Fiber Making Machine Manufacturing Equipment Production Line
        Concrete Glued Steel Fiber Making Machine Manufacturing Equipment Production Line
        產品詳情

        Ganzhou Daye Metallic Fibre Co., Ltd. is a manufacturing company working on researching and developing various specifications of steel fibre products along with various types of steel fibre equipment. The objective of our company promises that whenever we provide after-sales service, we will work out solutions to their problems. We can help customers to solve a variety of difficulties related with production timely. Our machine adopts imported moulds to feed, roll, shape, cut and make fibers formed continuously, which is the most advanced ends hooked steel fibre equipment at the moment.

        EquipmentName:DAYEEndHook Glued SteelFibreMachine

        I. Function:producehooked end glued steel fiber, capacity 7 to 8 tonsper10hours, forming rateup to 99%

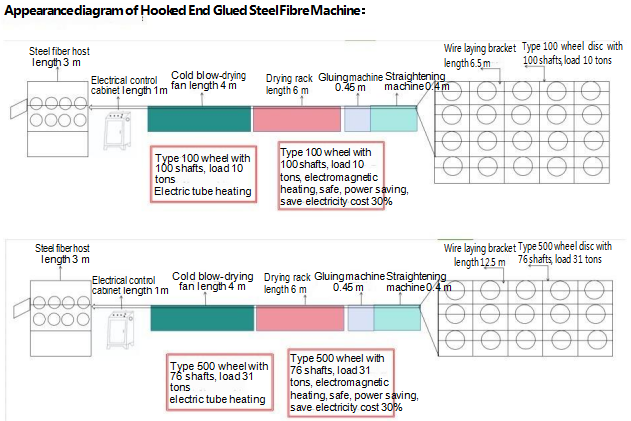

        II. Equipment Components

        1.Steel fibre millhead (Cutterhead diameter 300mmX90mm) 1 set

        2.Automatic brake wirelaying bracket two specifications

        1)type100 wheel wirelayingbracket with100 shafts, length6.5m, load10 tons1 set

        2)type500 wheel wirelayingbracket with76 shafts, length12.5m, load31tons1 set

        3.Straightener (0.4 M) 4 set

        4.Gluingmachine(0.45M)1 set

        5.Drying rack two specifications

        1)Dryingrack(stable, controllable, length3.2m) 2set

        2)Dryingrack (electromagneticheating, length 6m) 1 set

        6.Coldairdryingrack(length6m) 1 set

        7.Electrical control cabinet(withmonitor) 1 set

        8.Packagingvibrator 1 set



        III. Manufacturing requirements:

        1. Design speed: 80 to 100 meters per minute(50Hz), capacity 6 to 8 tons per 10 hours;

        2. Power of rolling mill motor: 22KW-4;

        3. Rolling wire diameter: 0.5-1.0mm carbon steel wire;

        4. Transmission mode: synchronous belt + spur gear;

        5. Bearings: imported bearings;

        6. Transmission gears: Rockwell hardness of all transmission gears is not less than HRC50;

        7. Wire feeding wheel: Φ300mm, material: round A3 carbon steeldisc and polyurethane rubber wheel;

        8. Rolling wheel: cutterhead Φ300 × 90mm; cutterhead is made of imported mold steel Cr12MoV with Rockwell hardness of HRC60; Cutter is high speed steel whose capacity is 800 tonnes or so under normal use. The wheel can ensure feed milling, forming, cutting and continuous one-time forming. Accordingly the forming rate of glued hooked ends steel fibre products can be as high as 99%;

        9. Wire laying disc: use I-shaped wheel to lay wire, 1 size Φ400 * Φ197 * 340 (size provided by the buyer), wire laying bracket with 100 shafts, load 10 tons;

        2 kinds of size Φ500*Φ500, wire laying bracket with 76 shafts, load 31 tons;

        10. Paralleling machine : paralleling more than 80 lines;

        11. Straightening machine: take up the lines neatly, feed the lines and make them arranged flatly, tightly as well as seamlessly;

        12. Gluing machine: gluing parts is precise, uniform coating, gluing speed of hose can be adjusted, the glue consumption of 1 ton of steel fibre is 8Kg;

        13. Baking frame: power of single rack 2.2KW * 18 racks, total power 39.6KW; temperature can be up to 500 ℃, which is stable and adjustable; made of suitable insulation heating material, to ensure no fire, no leakage of electricity, safety and reliability;

        14. Cold blow-drying fan: 1 set of 2.2KW;

        15. Standard configurations: a set of cutterhead, including blades. it is imported mold steel Cr12MoV; double-sided blade, the capacity of a set of cutter is about 800 tonnes under normal use;

        16. The design of this equipment is scientific, safe and efficient, and itsworkmanship is fine and beautiful;

        17. Painting: the equipment is painted after rust-proof treatment, and buyerprovides color sample requirements;

        IV. Installation, debugging, warranty and technical support:

        1. The equipment provided by the seller should meet the technical requirements and live up to industry and national related technical standards. The equipment and its entire accessories must be newly made products, which will be delivered after successful debugging in seller's factory. The seller and buyer will test run together after manufacture is completed.

        2. Installation and debugging: Within 3 working days after the contract is signed, the seller must provide foundation engineering and construction technical data and construction drawings such as pipelines (including electrical engineering, cooling water, compressed air). After the equipment arrives at buyer's factory, the seller will arrange engineers to instruct installation and debugging on the scene so that it can be put into production smoothly.

        3. Warranty: 1 year of equipment warranty, free after-sales service, lifetime technical support, equipment upgrade. During the use of the device, if buyer is blocked by operating difficulties and the video guidance cannot solve them, seller will provide on-site service for free. During the warranty period, if the electrical appliances and motors break down due to quality problems, they should be replaced for free. Vulnerable parts in normal loss are not within the scope of warranty. The consumables with normal loss can be purchased by buyer individually per the seller's guidance.

        4. The seller must provide sizes and specifications of consumable parts of the equipment such as transmission belts, blades, cutterhead, along with pressure wheels and guide the buyer to equip them in later process of use. The seller is responsible for the training of the buyer's operators and maintenance personnel to ensure that the buyer can operate the equipment correctly and put it into manufacture normally, including basic principles, operations, maintenance, together with configuration, installation, upkeep of consumables, etc.

        Welcome friends from all walks of life to visit our company to discuss business.
